Sapphire Al2O3 Crystal Substrate Ultrathin 2 3 4 Double Side Polished For Optical Industry
Unlock the brilliance of your next-generation optical, semiconductor, and LED applications with our premium sapphire wafers. Our sapphire wafers, crafted from the purest alumina (Al₂O₃), offer unmatched optical clarity, hardness, and thermal stability.

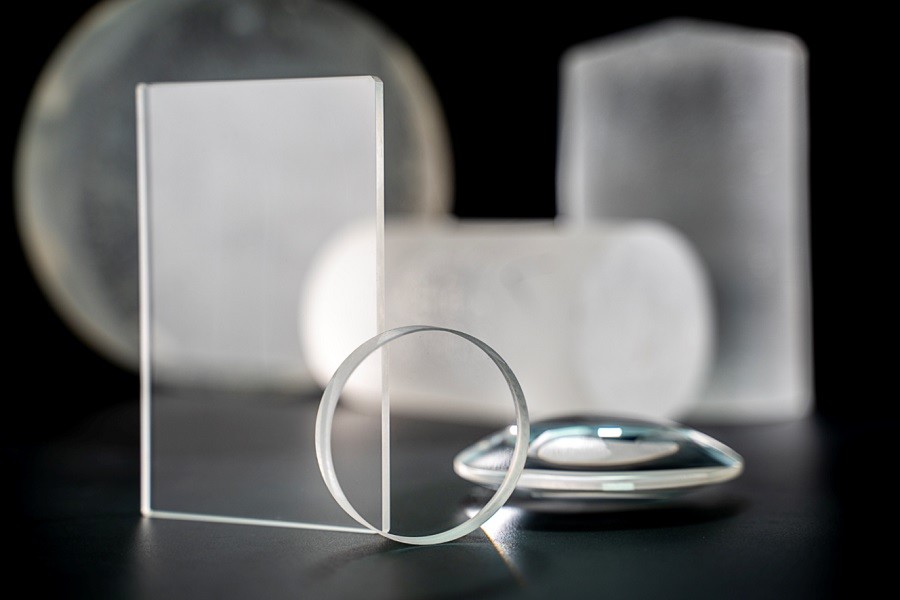

With exceptional optical transparency, our sapphire wafers are ideal for high-performance optical components such as windows, lenses, and filters. Their incredible hardness ensures durability and resistance to scratches and abrasion, even under harsh operating conditions.
Moreover, sapphire wafers' high thermal conductivity allows for superior heat dissipation, critical for maintaining performance in high-power applications. This makes them a preferred choice for semiconductor devices, LEDs, and other high-temperature electronics.
Whether you're developing cutting-edge technologies or enhancing existing products, our sapphire wafers are the perfect solution. Contact us today to learn more about how our wafers can elevate your applications to new levels of performance and reliability.
OPTICAL PROPERTIES
| Transmission Range | 0.17 to 5.5 microns |
| Refractive Index | 1.75449 (o) 1.74663 (e) at 1.06 microns |
| Reflection Loss | at 1.06 microns (2 surfaces) for o-ray - 11.7%; for e-ray - 14.2% |
| Index of Absorption | 0.3 x 10-3 cm-1 at 2.4 microns |
| dN/dT | 13.7 x 10-6 at 5.4 microns |
| dn/dm = 0 | 1.5 microns |
PHYSICAL PROPERTIES
| Density | 3.97 g/cm3 |
| Melting Point | 2040 degrees C |
| Thermal Conductivity | 27.21 W/(m x K) at 300 K |
| Thermal Expansion | 5.6 x 10 -6 /K (parallel C-axis) & 5.0 (perpendicular C-axis) x 10 -6 /K |
| Hardness | Knoop 2000 kg/mm 2 with 2000g indenter |
| Specific Heat Capacity | 419 J/(kg x K) |
| Dielectric Constant | 11.5 (parallel C-axis) 9.4 (perpendicular C-axis) at 1MHz |
| Young's Modulus (E) | 335 GPa |
| Shear Modulus (G) | 148.1 GPa |
| Bulk Modulus (K) | 240 GPa |
| Elastic Coefficients | C11=496 C12=164 C13=115
C33=498 C44=148 |
| Apparent Elastic Limit | 275 MPa (40,000 psi) |
| Poisson Ratio | 0.25 |
Acceptance Check
1. The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
2. After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
3. Please open the vacuum package in a clean room when the products are to be applied.
4. If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
